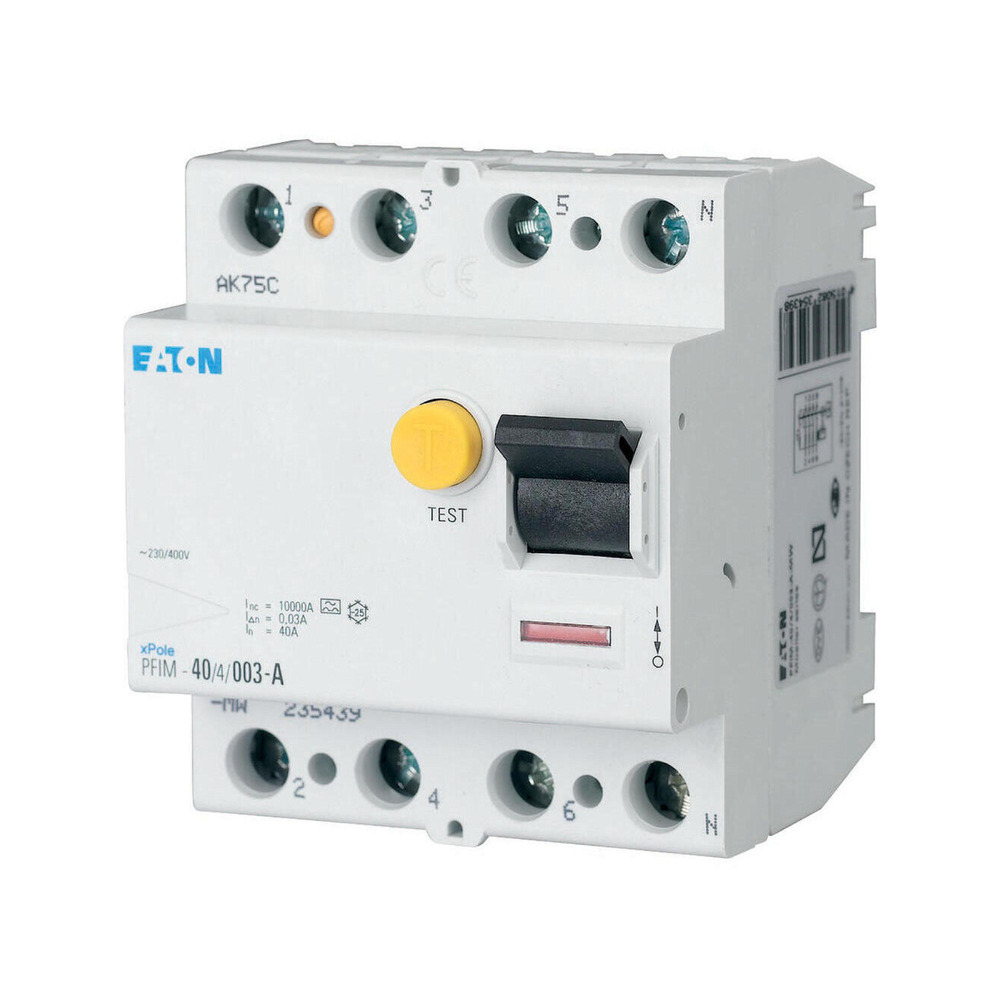

Eaton FI Schutzschalter 40 A 30 mA Typ A

Eaton RCD 40 A 30 mA type A

The go-e Charger is equipped with an integrated DC protection module with DC detection and additional AC detection (6 mA DC, 20 mA AC).

On the building side, an RCD type A must be installed and a miniature circuit breaker must be installed upstream. The local installation regulations must be observed.

GENERAL SPECIFICATIONS

• PRODUCT NAME: Eaton Moeller series xPole - PFIM Type AC, A, U, R RCCB
• CATALOG NUMBER: 235439
• MODEL CODE: PFIM-40/4/003-A-MW
• EAN: 4015082354398
• PRODUCT LENGTH/DEPTH: 80 mm
• PRODUCT HEIGHT: 76 mm
• PRODUCT WIDTH: 70 mm
• PRODUCT WEIGHT: 0.349 kg
• COMPLIANCES: RoHS conform
• CERTIFICATIONS: IEC/EN 61008
