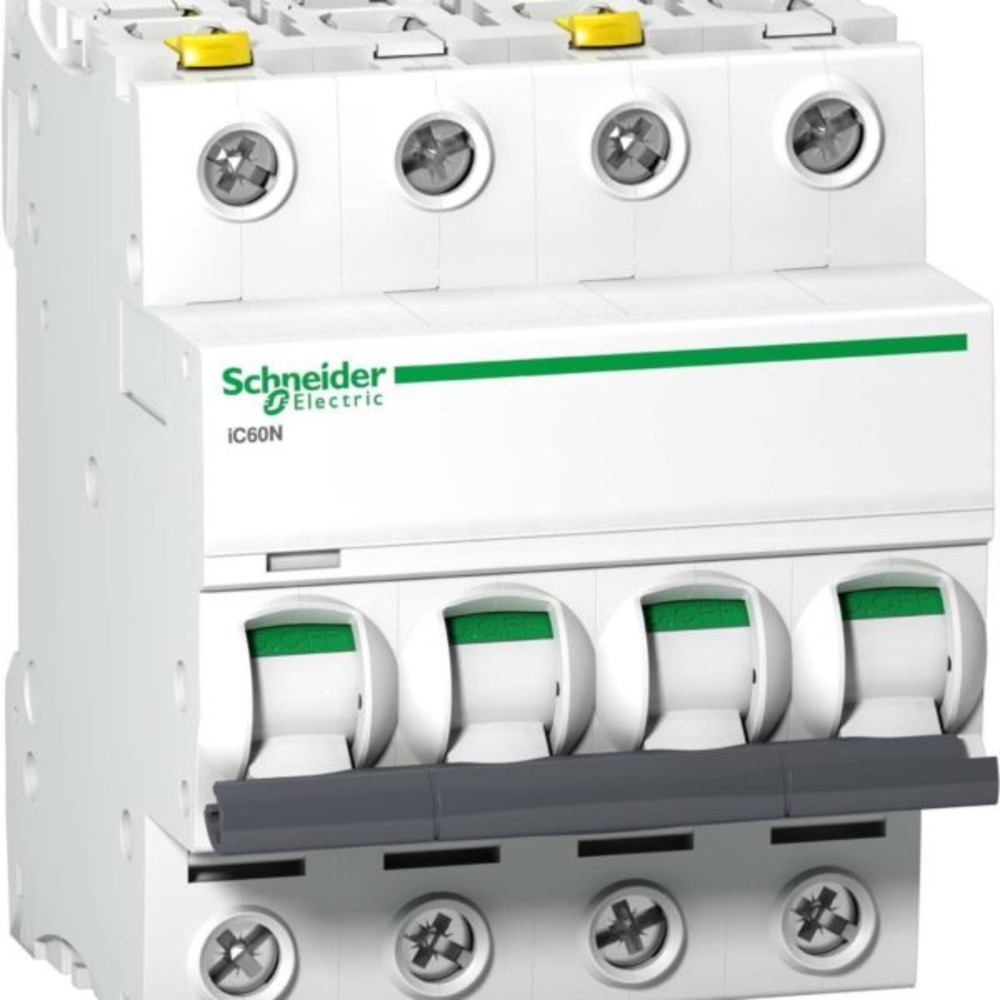

Strömbrytare 32 A 3P+N

Miniature circuit breaker 32 A 3P+N

The circuit to which the go-e Charger is to be connected must be equipped with a miniature circuit breaker (characteristic B or C) of the following specification:

• Connection 16 A or 32 A three-phase = 3- or 4-pole miniature circuit breaker for 16 A or 32 A.
• Connection 16 A or 32 A single-phase = 2-pole miniature circuit-breaker for 16 or 32 A

The miniature circuit breaker offered here is suitable for three-phase connection of the go-e Charger with a maximum of 32 A.

Mounting

• Protection class (IP): IP20 complies with EN/IEC 60529
• Pollution degree: 3
• Overvoltage category: IV
• Relative humidity: 95 % at 55 °C
• Ambient temperature during operation: -35...70 °C
• Ambient temperature during storage: -40...85 °C

Main Features

• Series/Product name: Acti 9 iC60N
• Product or component type: Miniature circuit breaker
• Pole description: 3P+N
• Neutral position: Left
• Rated current: 32 A
• Network connection: AC / DC
• Tripping unit technology: Thermomagnetic
• Characteristic: C
• Breaking capacity:
• 6000 A Icn at 400 V AC 50/60 Hz complies with EN/IEC 60898-1
• 36 kA Icu at 12-60 V AC 50/60 Hz complies with EN/IEC 60947-2
• 10 kA Icu at 380-415 V AC 50/60 Hz complies with EN/IEC 60947-2
• 20 kA Icu at 220-240 V AC 50/60 Hz complies with EN/IEC 60947-2
• 36 kA Icu at 100-133 V AC 50/60 Hz complies with EN/IEC 60947-2
• 6 kA Icu at 440 V AC complies with EN/IEC 60947-2
• Application category: Category A complies with EN/IEC 60898-1
• Suitability for insulation: Yes complies with EN/IEC 60898-1 and EN/IEC 60947-2

Additional features

• Network frequency: 50/60 Hz
• Magnetic trip limit: 8 x In +/- 20 %.
• Rated trip current Ics:
• 15 kA 75 % complies with EN/IEC 60947-2 - 220-240 V AC 50/60 Hz
• 7.5 kA 75 % corresponds to EN/IEC 60947-2 - 380-415 V AC 50/60 Hz
• 4.5 kA 75 % complies with EN/IEC 60947-2 - 440 V AC 50/60 Hz
• 6000 A 100 % complies with EN/IEC 60898-1 - 400 V AC 50/60 Hz
• 27 kA 75 % complies with EN/IEC 60947-2 - 12-133 V AC 50/60 Hz
• Limitation class: 3 complies with EN/IEC 60898-1
• Rated insulation voltage Ui: 500 V AC 50/60 Hz complies with EN/IEC 60947-2
• Rated impulse withstand voltage [Uimp]: 6 kV complies with EN/IEC 60947-2
• Positive contact indicator: Present
• Type of actuation: Toggle switch
• Local signalling: Trip indicator
• Mounting bracket: DIN rail
• 9 mm pitch: 8
• Dimensions (height x width x depth): approx. 91 x 72 x 78.5 mm
• Colour: white
• Mechanical life: 20,000 cycles
• Electrical life: 10,000 cycles
• Connections - terminals: Double terminal, top or bottom fixed 1...35 mm² max. or double terminal, top or bottom flexible 1...25 mm² max.
• Wire stripping length: 14 mm (top or bottom)
• Tightening torque: 3.5 Nm (top or bottom)
• Earth fault protection: Separate block
