go-e Controller

Item number: CH-30-01

EAN: 9120087411832

With the go-e Controller, you can charge your electric car or plug-in hybrid with the go-e Charger even more cheaply, safely and sustainably:

1. Maximise the self-consumption of your PV system.
2. Rely on dynamic load balancing to avoid overloading the power connection when charging electric vehicles.
3. Use energy monitoring to keep track of the energy flows in your building.


249,00 €

including 20% VAT. , plus shipping (Paket)

Recommended retail price: 249,00 €

Shipping time: 21 days



The go-e Controller ensures that surplus electricity from a PV system is used to charge electric vehicles. In this way, you get the most out of your investment in a PV system because you increase your own consumption. Using dynamic load balancing, the go-e Controller prevents an overload of the house power supply by automatically reducing the charging power for electric cars and plug-in hybrids connected to go-e Chargers during detected load peaks and increasing it again later.

The go-e Controller is compatible with all go-e Chargers (Gemini and HOME series) and all types of photovoltaic inverters* and AC battery storage Systems.

Energy monitoring

With the go-e Controller, you monitor the energy flows of buildings. As a result, depending on the position of the sun and the current power demand in a building, charging processes of electric cars can be controlled even smarter in interaction with go-e Chargers. But you can also simply use the Controller to monitor consumers. For example, you can keep an eye on the energy flows of a heat pump, air conditioning system or sauna. 1-phase or 3-phase operation of the Controller is possible. In the case of three-phase power grids, you can monitor 3 additional devices (e.g. PV inverter, AC battery storage and heat pump), in the case of single-phase power grids even 5 additional devices.

Self-consumption optimisation: Efficient use of surplus solar power

With the go-e Controller, you charge surplus solar energy into the batteries of electric vehicles via one or more go-e Chargers. If your PV panels generate more energy than is needed to operate your household appliances, you increase your self-consumption by charging and thus save a lot of money with green energy. For the PV Surplus Charging and dynamic load balancing functions, no measurement of PV production is necessary. However, by direct measurement at the AC connection of the inverter, self-consumption can also be displayed correctly. No direct communication to the PV system is necessary. Battery storage systems can also be taken into account as long as they can be measured at the AC Connection (for hybrid inverters with DC battery connection, direct measurement of battery power is not possible). It is up to you whether you want to charge exclusively with PV surplus electricity or also with mains electricity.

Automatic phase switching**

If your PV system generates at least 1.4 kW of surplus energy, the go-e Controller transmits this information to the go-e Charger, which then takes care of the actual charging process with PV surplus power. The Controller automatically switches between single-phase and three-phase charging depending on the available current. In this way, you can achieve high self-consumption even with low production of PV surplus energy. As soon as your PV system produces enough excess power, the Controller switches to threephase charging.

Dynamic load balancing to prevent Blackouts & Peak Shaving

To avoid power cuts, you need a load balancing system when charging electric vehicles. The go-e Charger already offers static load balancing, which allows you to take into account the maximum available power of your building when charging several electric cars. However, you would have to plan a buffer, as there are other electricity consumers running in the building. Therefore, the go-e Controller enables dynamic load balancing. If necessary due to many electricity consumers running at the same time the charging power of the go-e Chargers connected to the Controller is automatically adjusted. As a result, your household appliances and charging stations do not consume more electricity at once than your house connection can handle. And that fully automatically.

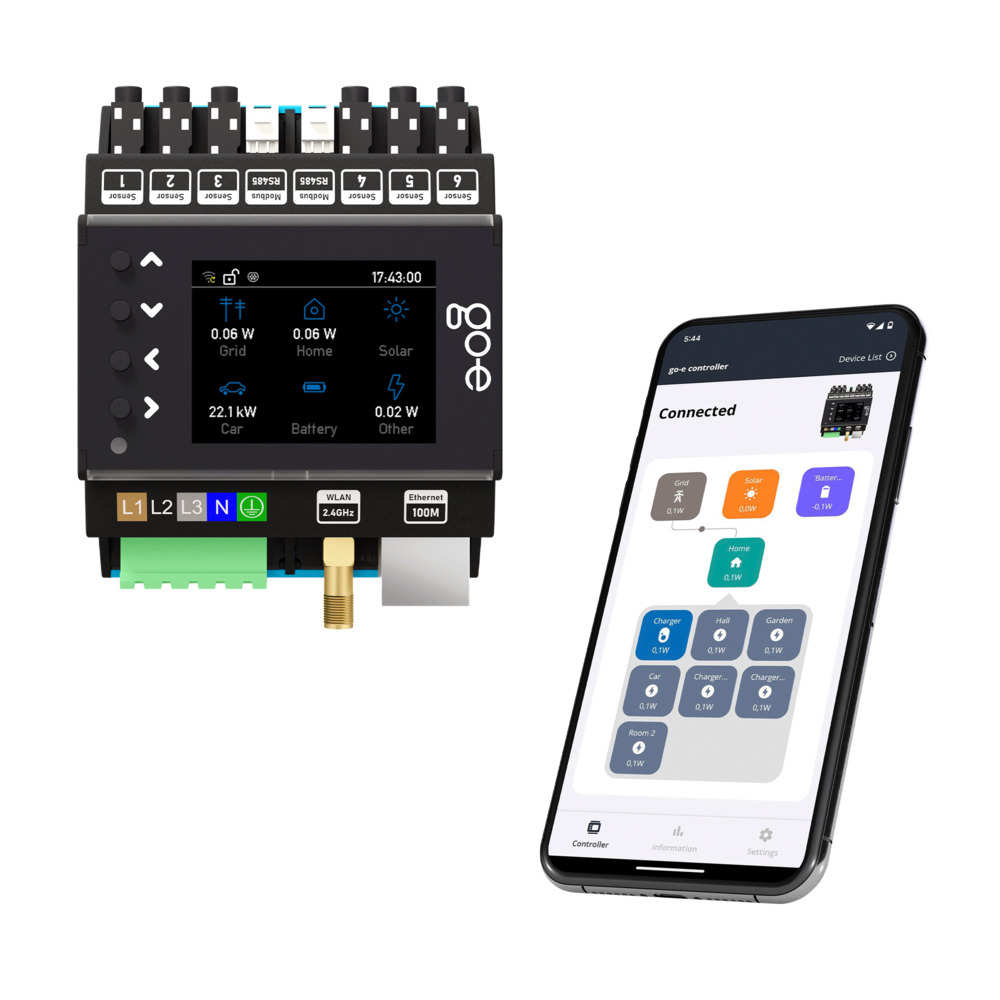

Convenient control from the couch

Set your preferences for solar energy production and consumption via the app, right from your couch. Or use the go-e app to access all controller settings and adjust them to your needs. Whether dynamic load balancing or electricity consumption in your building. You keep an eye on everything. Once the controller is connected via WiFi or Ethernet, charging your electric vehicle becomes even simpler, safer, cheaper and more sustainable.

Advanced functions for experts and Integrators

You have programming skills? Get even more control when charging an electric vehicle. The controller has additional interfaces such as local HTTP API, Modbus TCP and MQTT. With the optional cloud connection, the controller‘s functions can be optimised even further.

Manufacturer's warranty: 24 months

Scope of delivery

  • 1 x go-e Controller with connecting clamp (Made in Austria)
  • 6 x Current transformers foldable, 100 A with jack plug
  • 6 x 90 degree jack plug (optionally connectable)
  • 1 x WiFi antenna, self-adhesive (optionally connectable)
  • 1 x Ethernet flat cable 2 m (optionally connectable)
  • 1 x Data card with serial number and password for WiFi access point
  • 1 x Quick reference guide

Product specifications

  • Dimensions (W x H x D): approx. 72 x 90 (with plugs) x 61 mm (4 division units)
  • Weight: 193 g
  • Voltage measurement: 4 inputs
    • three-phase (L1, L2, L3 and N)
    • single-phase (L1 and N)
  • Nominal voltage: 3 x 230 V (single-phase) / 400 V (three-phase)
  • Nominal frequency: 50 Hz

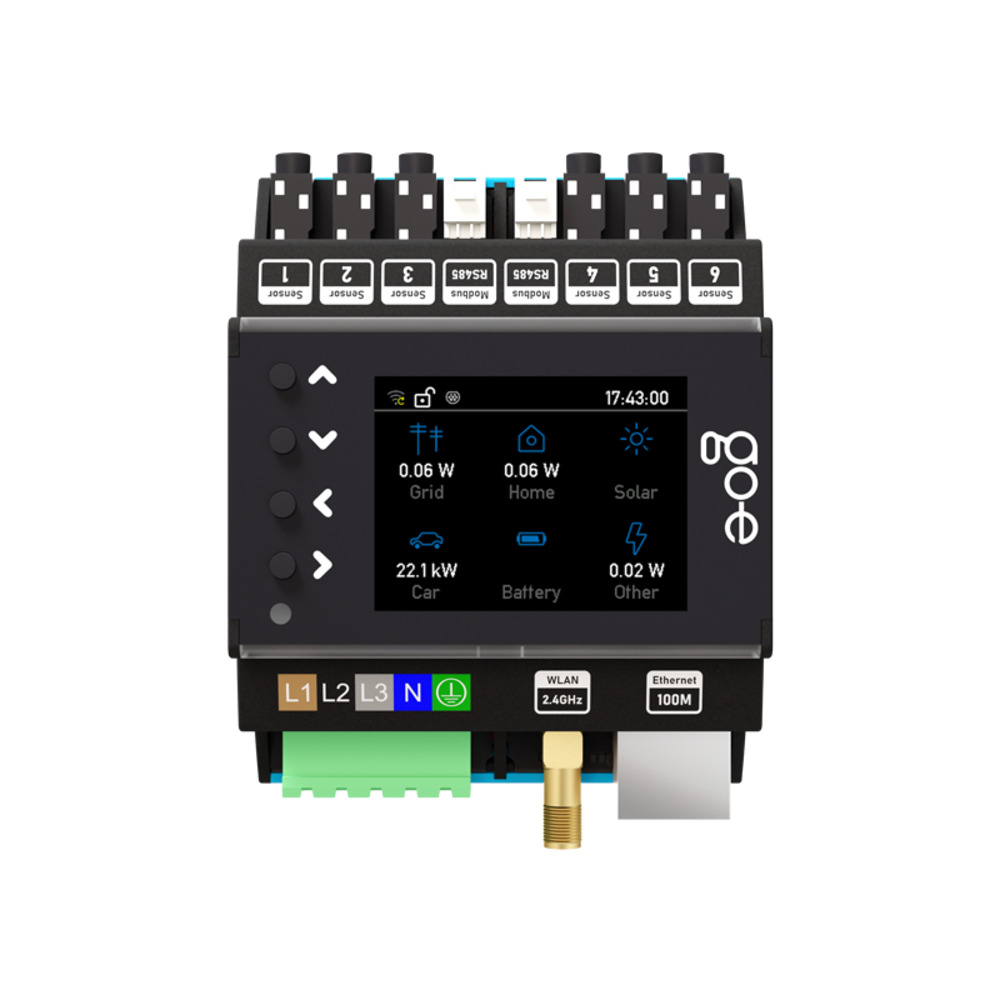

  • Display: Color display
  • Compatibility:
    • go-eCharger Home series
    • go-e Charger Gemini series
    • All PV inverters*
    • All AC battery storage systems

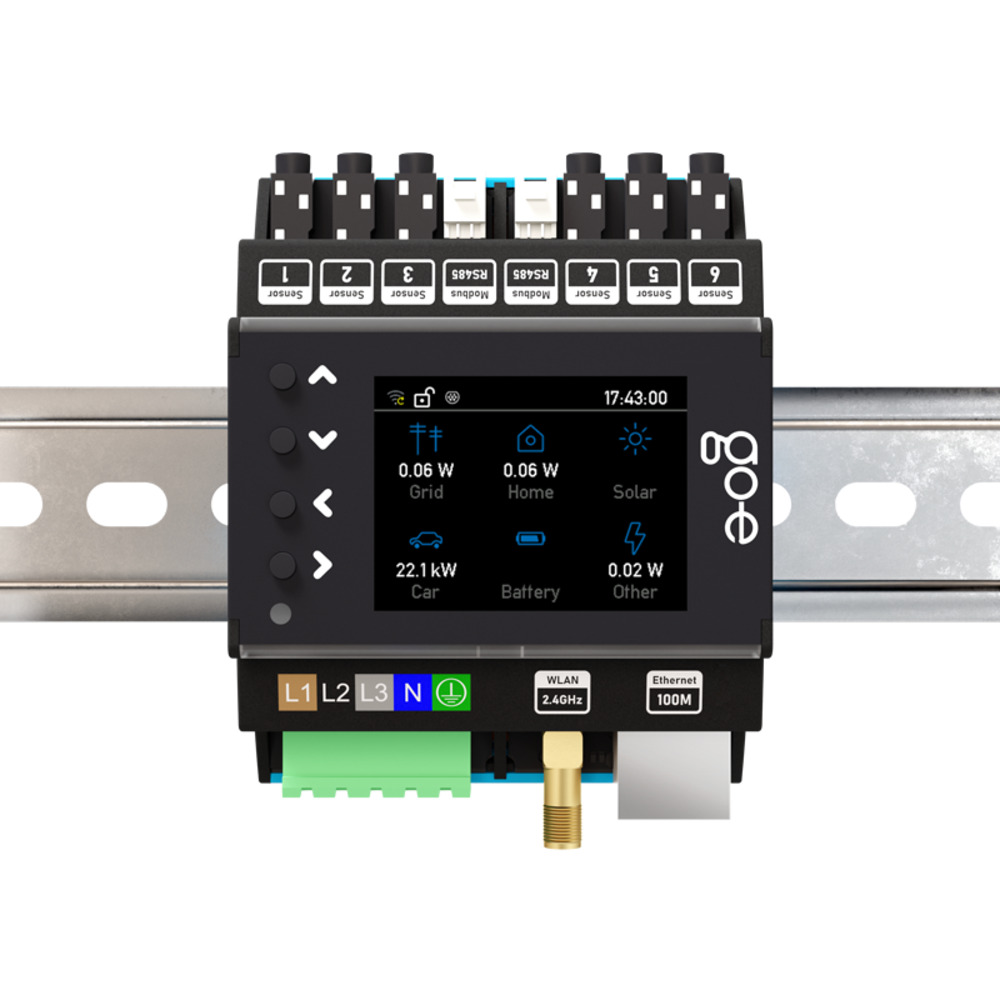

An electrical installation distributor is recommended as the place of installation. If there is no more space, it is also possible to install the go-e Controller in a new surface-mounted / flush-mounted distributor next to it and to lay the connection cables for voltage measurement and current transformers there.

Measurement functions:

  • L1 - PE, L2 - PE, L3 - PE: Nominal = 230 V, Max = 277 V
  • L1 - N: Min = 100 V, Nominal = 230 V, Max = 277 V
  • L1 - L2, L1- L3, L2 - L3: Nominal = 400 V

Inputs for current measurement

  • max. measurable current: Sinus = 100 A, Peak = 144 A
  • max. permantent current (thermally limited): RMS = 140 A

Network

  • Ethernet 802.3: 10M / 100M, full-duplex or half-duplex DHCP or static IP address
  • WiFi Station 802.11 b/g/n 2,4GHz: Supported encodings: open / WEP / WPA / WPA2 / WPA3, up to 10 configurations can be saved, DHCP or static IP address
  • WiFi Access Point: For local connection with the app or API, channel freely adjustable from 1 - 13, SSID and password adjustable, deactivatable

Interfaces and features



Possible in the local network

Cloud connection

Modbus TCP API

Yes

Not possible

MQTT API

Yes, connections in local Networks and to the internet possible

Not possible

HTTP API

Yes Yes

Connection to go-e Chargers (HOME series V3 and Gemini series)

Yes, number not limited

Optional data transmission via cloud possible (necessary if not in the same subnet or separated by NAT)

Connection to go-e Chargers (HOME series V2)

No

Cloud connection at go-e Charger HOME V2 and go-e Controller has to be established

Dynamic load balancing

Yes, local transmission of measured values

Cloud connection on the go-e Charger must exist

go-e app

Yes, automatically fi nds go-e Charger in local network with mDNS

Yes, remote access with serial number and password input

Log data recording and export with measured values

Not via the go-e app / go-e cloud / display. Own data acquisition via API possible. Yes

Graphical representation of the power consumption in the past

Not via the go-e app / go-e cloud / display. Own data acquisition via API possible.

Yes



















































*PV optimisation is also possible without direct measurement of production by the inverter. Own production can be measured and visualised via a sensor for AC inverters only.
**Only available for HOME Series V3 and Gemini Series.


Shipping weight: 1.10 Kg
Product weight: 0.19 Kg
