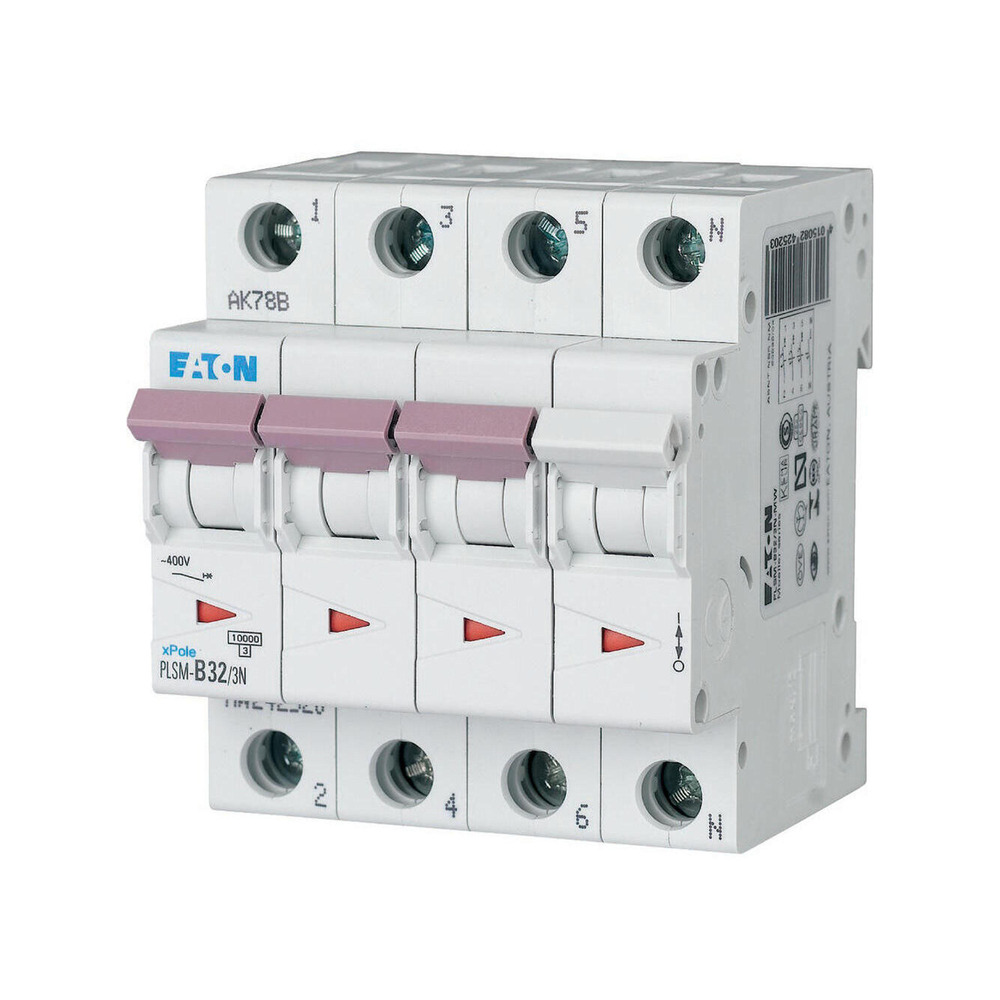

EATON Miniature circuit breaker 32 A 3P+N

The circuit to which the go-e Charger is to be connected must be equipped with a miniature circuit breaker (characteristic B or C) of the following specification:

• Connection 16 A or 32 A three-phase = 3- or 4-pole miniature circuit breaker for 16 A or 32 A.
• Connection 16 A or 32 A single-phase = 2-pole miniature circuit-breaker for 16 or 32 A

The miniature circuit breaker offered here is suitable for three-phase connection of the go-e Charger with a maximum of 32 A.

GENERAL SPECIFICATIONS

• Product name: Eaton Moeller series xPole - PLS6/M MCB
• Part no.: PLSM-B32/3N-MW
• EAN: 4015082425203
• Product Length/Depth: 80 millimetre
• Product height: 75 millimetre
• Product width: 70 millimetre
• Product weight: 0.454 kilogram
• Compliances: RoHS conform
• Product Tradename: xPole - PLS6/M

PRODUCT SPEZIFICATION

• Application: Switchgear for residential and commercial applications, xPole - Switchgear for residential and commercial applications
• Number of poles: Three-pole + N
• Number of poles (total): 4
• Number of poles (protected): 3
• Tripping characteristic:B
• Release characteristic: B
• Amperage Rating: 32 A
• Type:Miniature circuit breaker, PLSM

TECHNICAL DATA - ELECTRICAL

• Voltage type: AC
• Rated operational voltage (Ue) - max: 400 V
• Rated insulation voltage (Ui): 440 V
• Rated impulse withstand voltage (Uimp): 4 kV
• Frequency rating - min: 50 Hz
• Frequency rating - max: 60 Hz
• Rated switching capacity (IEC/EN 60898-1): 10 kA
• Rated short-circuit breaking capacity (EN 60898) at 230 V: 10 kA
• Rated short-circuit breaking capacity (EN 60898) at 400 V: 10 kA
• Rated short-circuit breaking capacity (IEC 60947-2) at 230 V: 0 kA
• Rated short-circuit breaking capacity (IEC 60947-2) at 400 V: 0 kA
• Overvoltage category: III
• Pollution degree: 2

TECHNICAL DATA - MECHANICAL

• Width in number of modular spacings: 4
• Built-in depth: 70.5 mm
• Degree of protection: IP20
• Connectable conductor cross section (solid-core) - min: 1 mm²
• Connectable conductor cross section (solid-core) - max: 25 mm²
• Connectable conductor cross section (multi-wired) - min: 1 mm²
• Connectable conductor cross section (multi-wired) - max: 25 mm²
• Rated operational current for specified heat dissipation (In): 32 A
• Heat dissipation per pole, current-dependent: 0 W
• Equipment heat dissipation, current-dependent: 12.5 W
• Static heat dissipation, non-current-dependent: 0 W
• Heat dissipation capacity: 0 W
• Ambient operating temperature - min: -25 °C
• Ambient operating temperature - max: 75 °C
