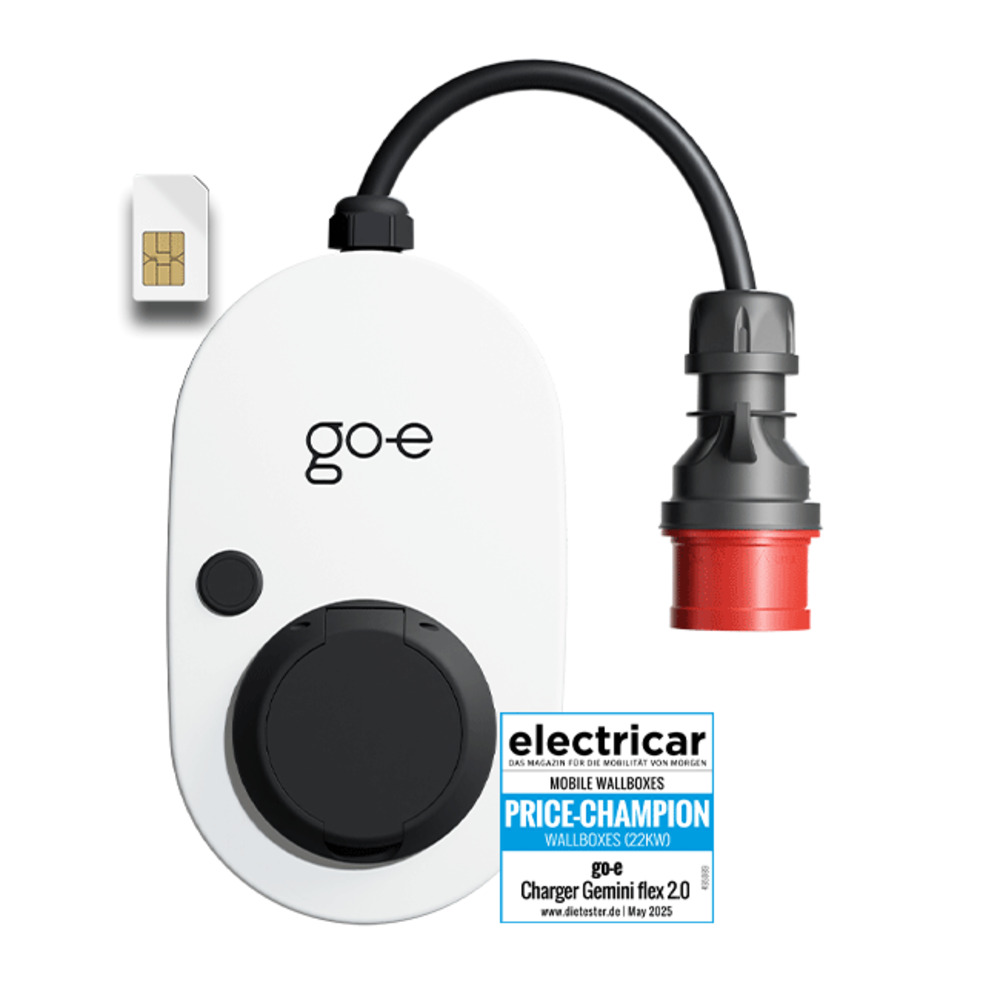

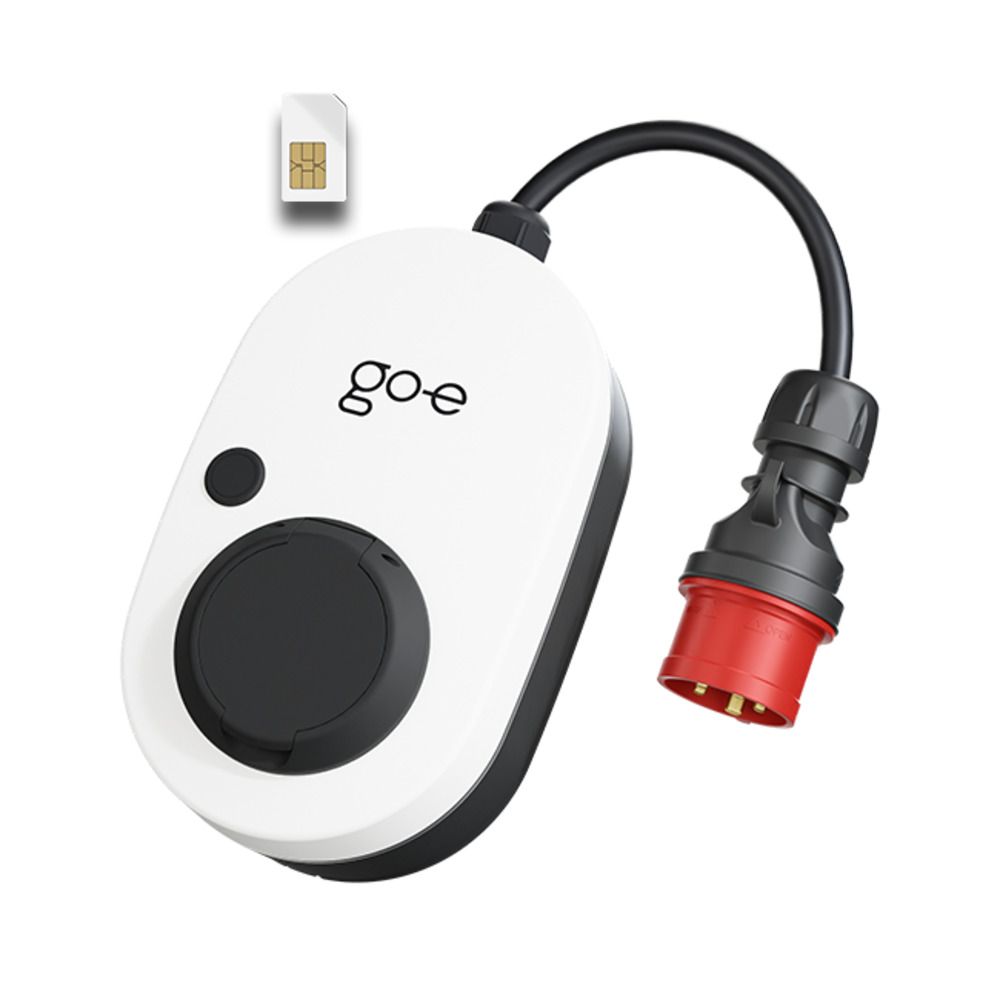

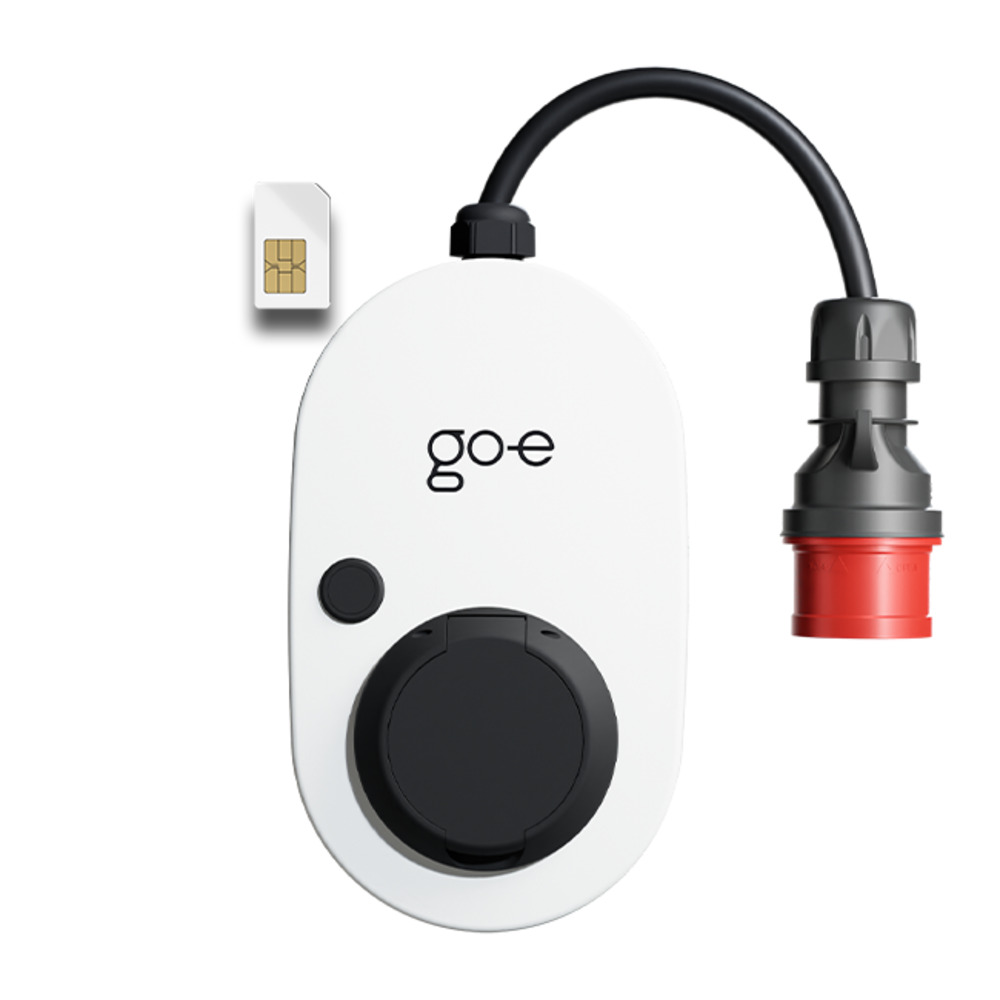

go-e Charger Gemini flex 2.0 11 kW

go-e Charger Gemini flex 2.0 11 kW

The go-e Charger Gemini flex 2.0 11 kW is a smart wallbox with cellular connectivity for affordable and sustainable charging of electric cars. Thanks to the integrated SIM card, you can use smart charging functions anywhere, even without a WiFi connection. The wallbox can also be converted into a mobile wallbox in no time at all.

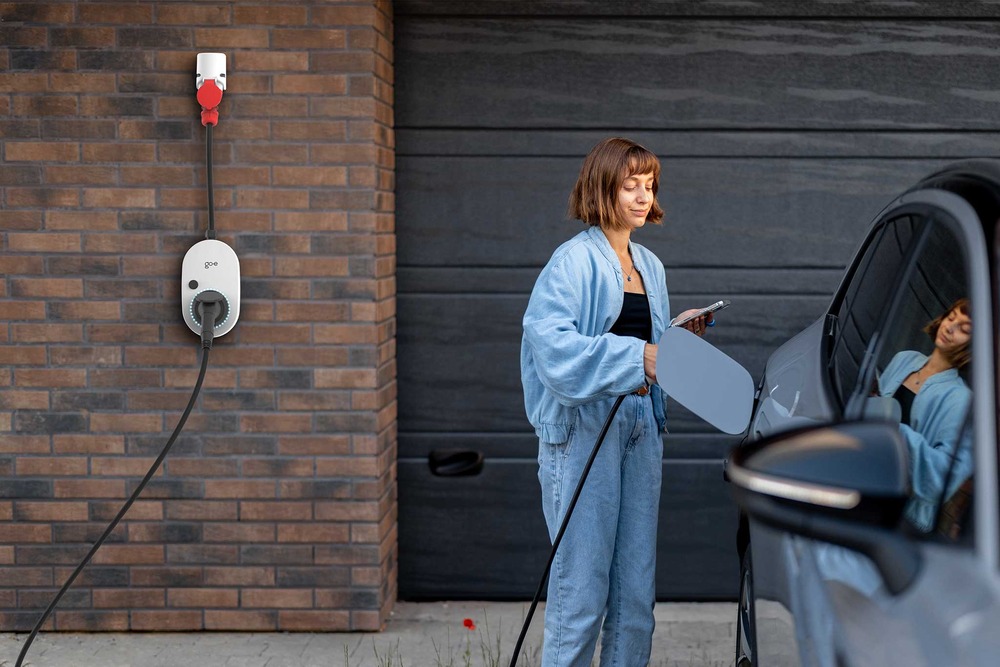

This go-e Charger is suitable for indoor and outdoor installation. Connect it directly to an existing red CEE 16 A three-phase socket and it is ready for the first charging process (plug & play). It is not necessary to open the go-e Charger as part of the installation process. The device must never be opened in any other case.

The go-e Charger ensures a safe charging process. The DC protection module switches the charger off completely if DC residual currents occur. The wallbox can be used with or without an app. The free go-e app can be used to change the convenience and basic settings, allowing the wallbox to be adapted to your personal charging behaviour. For example, you can plan the charging process to make it more sustainable as well as affordable and reduce the load on the power grid.

Remote technical support thanks to mobile phone connection

Technical support is now even easier and more convenient for you thanks to cellular connectivity. Remote diagnostics, troubleshooting and maintenance are now often possible without a "workshop visit" thanks to over-the-air updates.

More flexibility and reliability

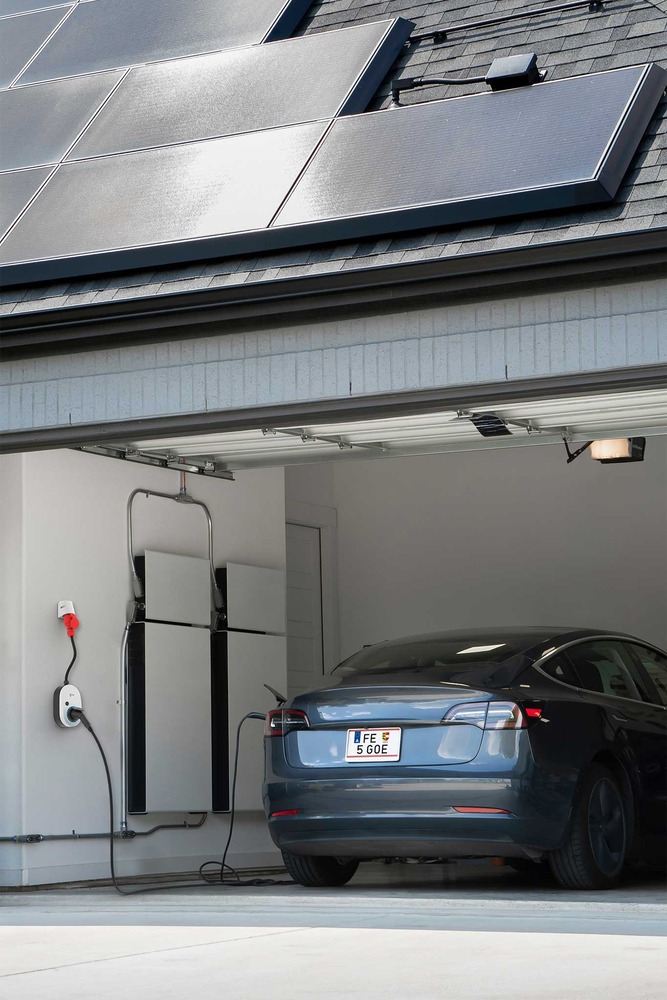

The go-e Charger Gemini flex 2.0 11 kW is always there when you need it. Data is transmitted not only via WiFi, but also via the 4G LTE Cat-1 mobile phone standard or in fallback via 2G / Edge. This means you can use the intelligent features of the go-e Charger, such as fully automated PV surplus charging or flexible energy tariffs, to name just two, even if your go-e Charger is not within Wi-Fi range.

Country of origin: Austria
Due to legal regulations, the go-e Charger Gemini flex 2.0 must not be used in Norway.

go-e Charger Gemini flex 2.0 11 kW

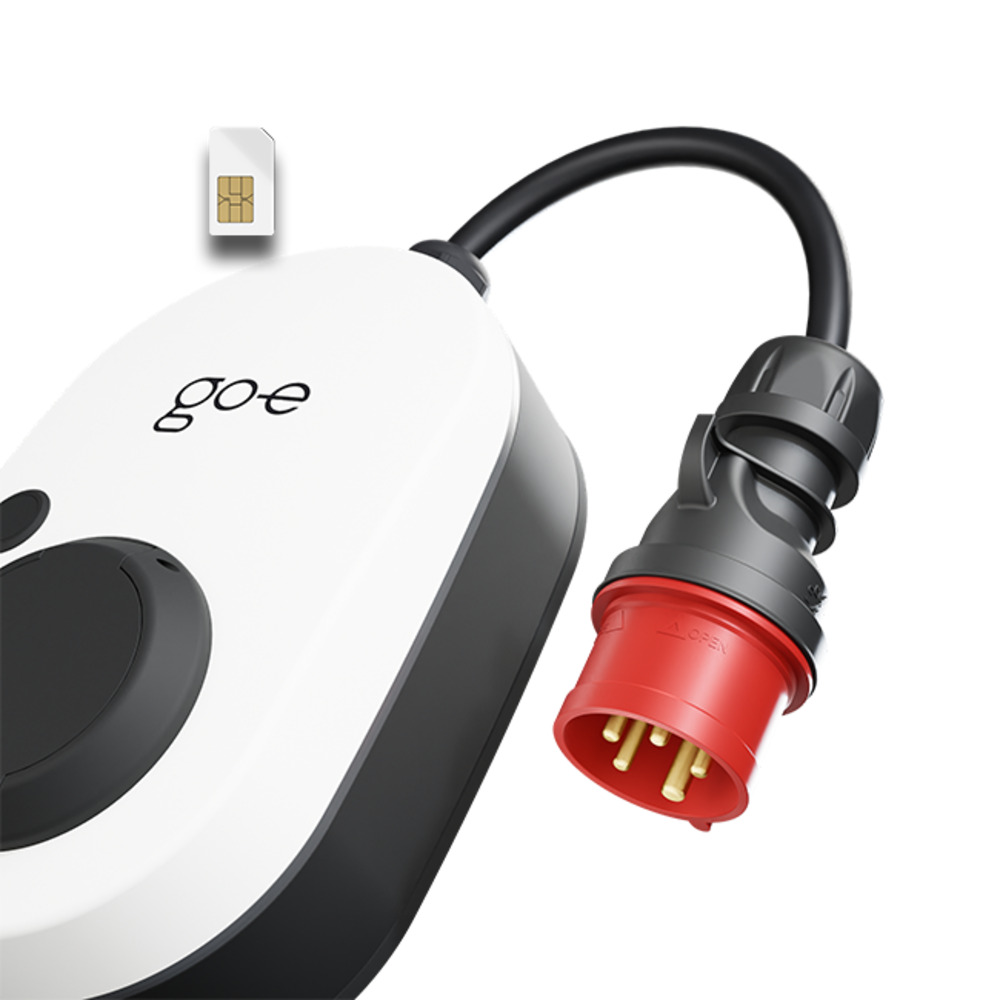

• 11 kW wallbox* with 16 A CEE red plug
• Wall bracket incl. screws and dowels
• Optionally mountable anti-theft device (U-piece)
• One reset card
• One RFID chip (already taught-in)
• Brief instructions

*Please note our information on a country-specific registration and/or authorisation requirement with the electricity grid operator.

Charging Power

• Maximum charging power: 11 kW (16 A 3-phase)
• Ampere and status display: Readable via LED ring and app
• Setting the charging power: Via push button and app
• Charging power adjustable between 1.4 kW and 11 kW depending on the number of phases of the car's onboard charger (via charging current in 1 ampere steps between 6 A and 16 A):

• Single-phase charging car: 1.4 kW to 3.7 kW (country-specific limitations must be observed).
• Two-phase charging car: 2.8 kW to 7.4 kW (two-phase connection of the charger is not possible)
• Three-phase charging car: 4.2 kW to 11 kW (go-e Charger switches through the power that is available at the connection)

Product specifications

• Mobile wallbox/charging station: IC-CPD, according to EN IEC 62752:2016/A1:2020
• Dimensions: approx. 15.5 x 26 x 11 cm
• Weight: approx. 1.63 kg
• Connection cable: 30 cm + plug, 5 x 2.5 mm² (type H07BQ-F)
• Connection: single-phase or three-phase
• Rated voltage: 230 - 240 V (single-phase) / 400 - 415 V (three-phase)
• Rated frequency: 50 Hz
• Mains types: TT/TN/IT
• Standby power: 3.1 W (LEDs dark) to 5.2 W (LEDs bright)
• RFID: 13.56 MHz
• WLAN: 802.11b/g/n 2.4 GHz / frequency band 2412-2472 Mhz
• Cellular connectivity: 4G | LTE / 2G | EDGE / Supported bands: GSM900, GSM1800, LTE FDD: B1 B3 B5 B7 B8 B20 / Frequency Range: 800MHz - 2600MHz

Additional cellular specifications

• Mobile phone contract: At least 5 years of free cellular connection. Extension possible for 12 euros (incl. VAT) per year.
• SIM card type: Factory-integrated eSIM from go-e (not exchangeable). Factory-installed customer-owned nano-SIM for larger B2B projects.
• Activate/Deactivate: At any time via go-e app or API
• Connection types: Standard: 4G LTE Cat-1; Fallback in case of limited reception: 2G / EDGE
• Country availability go-e tariff: Unlimited cellular connection in all EU countries, Great Britain, Switzerland, Norway and Liechtenstein. Free roaming between these countries.
• Mobile networks: An overview of the mobile networks used in the above-mentioned countries is available on the go-e website in the Support/FAQ section

Permissible ambient conditions

• Installation location: Indoors and outdoors
• Operating temperature: -25 °C to + 40 °C
• Storage temperature: -40 °C to + 85 °C
• Average temperature in 24 hours: Maximum 35 °C
• Altitude: Maximum 2,000 m above sea level
• Relative humidity: Maximum 95 % (non-condensing)
• Impact resistance: IK08

Connection to infrastructure

• CEE red 16 A (3-phase)
• With original go-e adapters (available as accessories):

• 11 kW Gemini flex to CEE red 32 A (three-phase - limited by charging box to 16 A)
• 11 kW Gemini flex to CEE blue 16 A (single-phase)
• 11 kW Gemini flex to safety plug 16 A (household socket - single-phase)

Connection to vehicle

• Type 2 socket (according to EN 62196-2) with mechanical locking (own type 2 cable required, available as accessory)
• Vehicles with type 1 can be charged with adapter cable type 2 to type 1 (available as accessory)

Safety

• Integrated DC protection module with DC detection and additional AC detection (6 mA DC, 20 mA AC). On the building side, an RCD type A must be installed and a miniature circuit breaker must be installed upstream. The local installation regulations must be observed.
• Protection class: I
• Pollution degree: II
• Anti-theft device: Locking of the charging cable
• Access control: Can be activated if required. Authentication via RFID or App possible. One learned RFID chip is already included.
• Input voltage: Phase and voltage check
• Switching functions: Switching function test
• Earthing test: For TT, TN mains (disconnectable earthing test for IT mains - Norway mode)
• Current sensor: 3-phase
• Temperature sensors: Regulation of the charging current in case of overtemperature
• IP65: Protection against dirt and water, suitable for permanent outdoor operation
• go-e grid operator API: For authorised access of the electricity grid operator to the go-e Charger for grid-serving power control
• Modbus TCP: e.g. for grid-serving power control by the electricity grid operator.

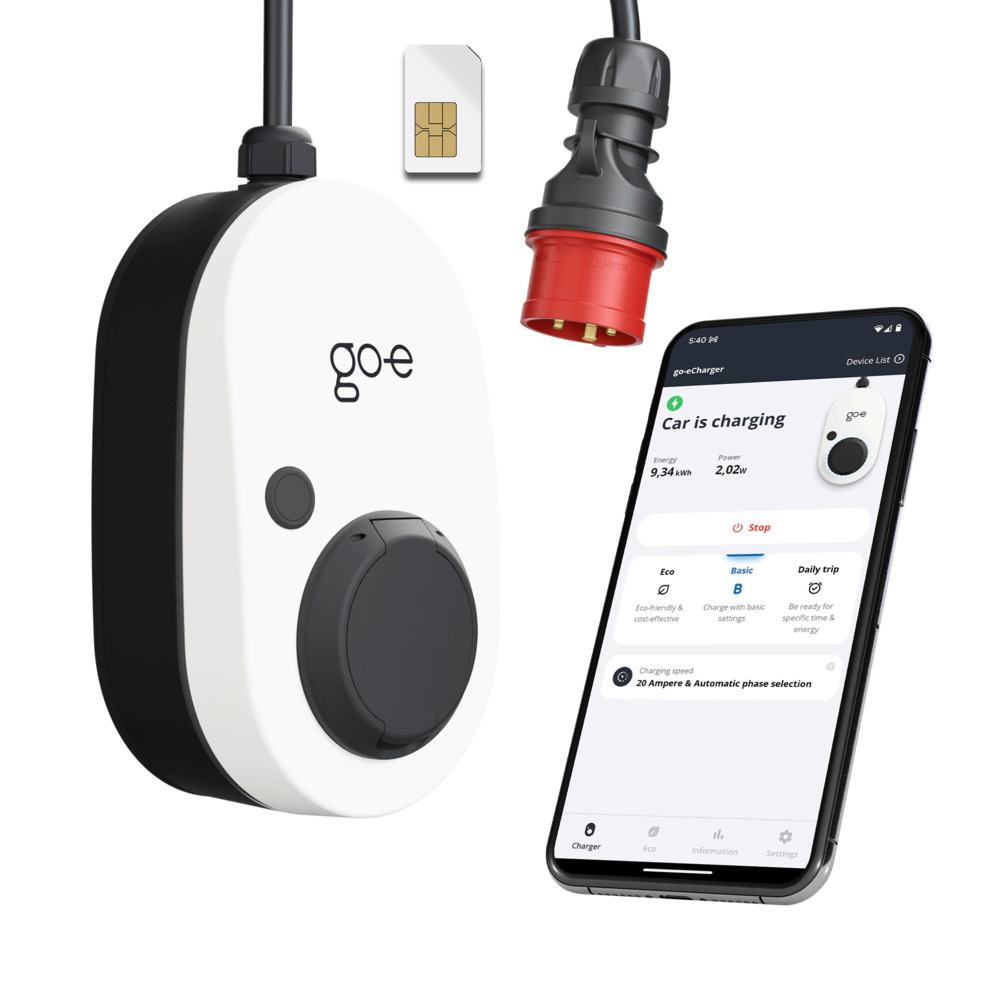

App and connectivity

• Local (WiFi hotspot) or worldwide** (WiFi or cellular connectivity) control and monitoring.
• Setting/checking the charge (voltage, current, power, energy)
• Adjustment of current level in 1 ampere steps
• Start/stop function
• RFID chip/card management (up to 10 users per charger) / access management (RFID/app)
• Scheduler
• Electricity meter (total kWh and total amount per RFID chip)
• kWh Limit Mode / Eco Mode** / Daily Trip Mode**
• Push notifications**
• Cable release functions
• Flexible electricity tariffs with intelligent charging management**/***
• Static load balancing**
• Photovoltaic connection via go-e controller (separate product) or open API interface (programming required) or alternative energy management system**
• OCPP 1.6**
• LED adjustment
• Management of charging levels via push-button on charging station
• Updateable for later functions (Smart Home, etc.)**
• Automatic unlocking of the charging cable in case of power failure
• 1-/3-phase switching via app or automatically with go-e Controller - even during the charging process
• Synchronisation of charging processes with the cloud and display of past charging processes**.
• Documented public API interfaces: HTTP, MQTT (only via WiFi possible), Modbus TCP (only via WiFi possible)

**Internet connection of the charger required

***Contract required with an electricity provider whose flexible electricity tariff is integrated in the go-e app. Several 100 tariffs are stored. The number of tariffs is constantly being expanded.
