go-e Charger Gemini 2.0 11 kW

go-e Charger Gemini 2.0 11 kW

The go-e Charger Gemini 2.0 is intended to be used by private households and small businesses (if no billing of electricity is planned).  It enables the affordable and sustainable charging of electric cars. Apart from mobility, the go-e Charger Gemini 2.0 11 kW offers the same range of functions as the mobile wallbox, the go-e Charger Gemini flex 2.0 11 kW.

No WiFi? No problem

Now smart charging is also possible for anyone who has no WiFi or a poor WiFi connection at the place of installation. The SIM card integrated in the go-e Charger Gemini 2.0 offers you free cellular connectivity (4G LTE Cat-1 or in fallback via 2G / Edge) for at least 5 years. An extension beyond this is possible for 12 euros per year.

Mobile phone connection including roaming

The go-e Charger Gemini 2.0 11 kW comes with a non-exchangeable eSIM from go-e. For larger B2B projects, it is possible to install a customer's own SIM card (nano-SIM). The LTE connection can be activated and deactivated in the app or via the API. The mobile connection with the go-e tariff works in all EU countries as well as in the UK, Switzerland, Norway and Liechtenstein, including free roaming.

We keep your go-e Charger young

You can now receive updates not only via WiFi, but also via the mobile network. Thanks to over-the-air updates, which are made possible by the SIM card integrated in the go-e Charger, you now have access to new functions and optimisations even if you cannot integrate your wallbox into a WiFi network. We keep your go-e Charger up to date so that it remains a long-lasting companion.

Installation of the go-e Charger Gemini 2.0 11 kW

The go-e Charger Gemini 2.0 can be quickly and easily connected to any existing junction box by an electrician. This saves time and money. Immediately after installation, the wallbox is ready for the first charging process. It is not necessary to open the go-e Charger as part of the installation process. The go-e Charger must not and does not need to be opened, even during the installation process.

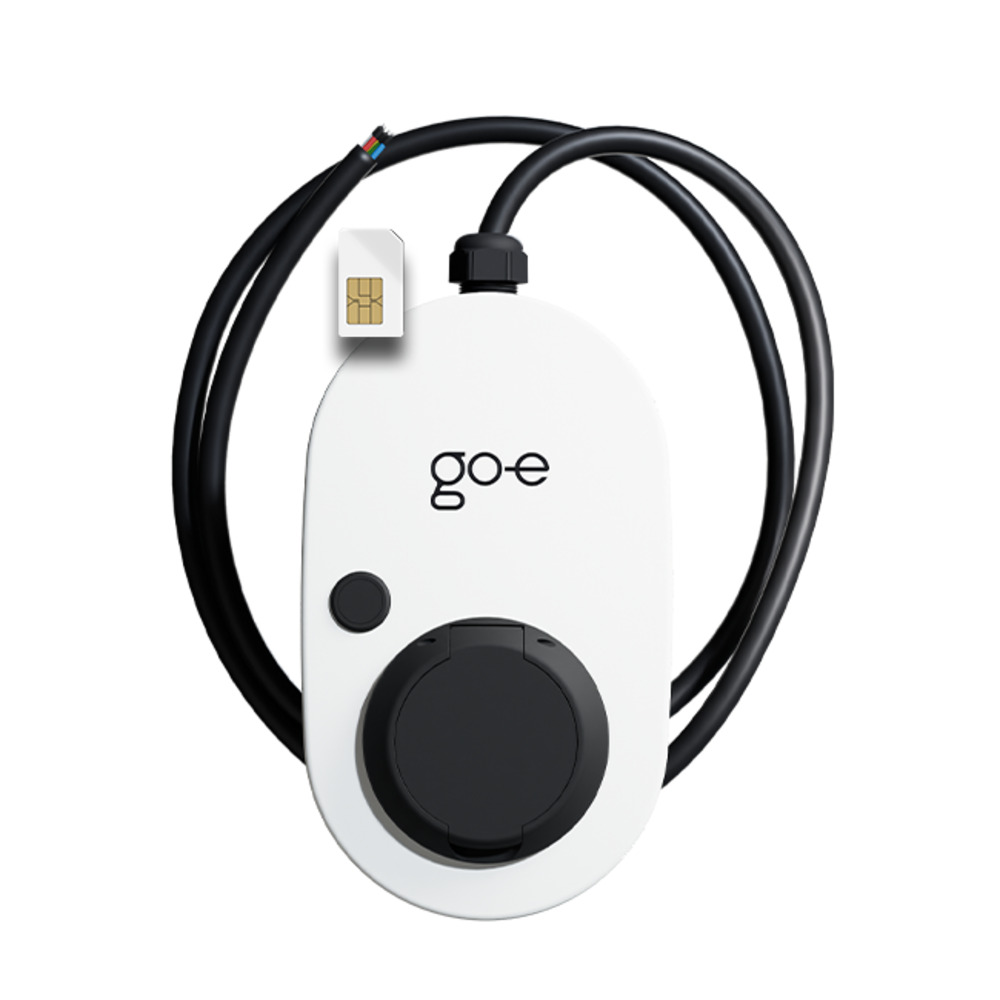

The stationary wallbox has a 1.8 metre long connection cable for permanent connection to a power distribution box. In contrast to the go-e Charger Gemini flex 2.0 11 kW, the go-e Charger Gemini 2.0 11 kW therefore has no plug and is not portable. The clever solution for anyone who needs a smart home charging station for wall installation only.

Country of origin: Austria

Important note: Due to legal regulations, the go-e Charger Gemini 2.0 11 kW may not be used in the following countries: Netherlands, France, Italy.

go-e Charger Gemini 2.0 11 kW

• 11 kW wallbox* with 1.8 metre connection cable for permanent installation
• 1x wall bracket incl. screws and dowels
• 1x reset card
• 1x RFID chip (already tuned in)
• 1x brief instructions
• Optionally mountable anti-theft device (U-piece)

*Please note our information on a country-specific registration and/or authorisation requirement with the electricity grid operator.

Charging Power

• Maximum charging power: 11 kW (16 A 3-phase)

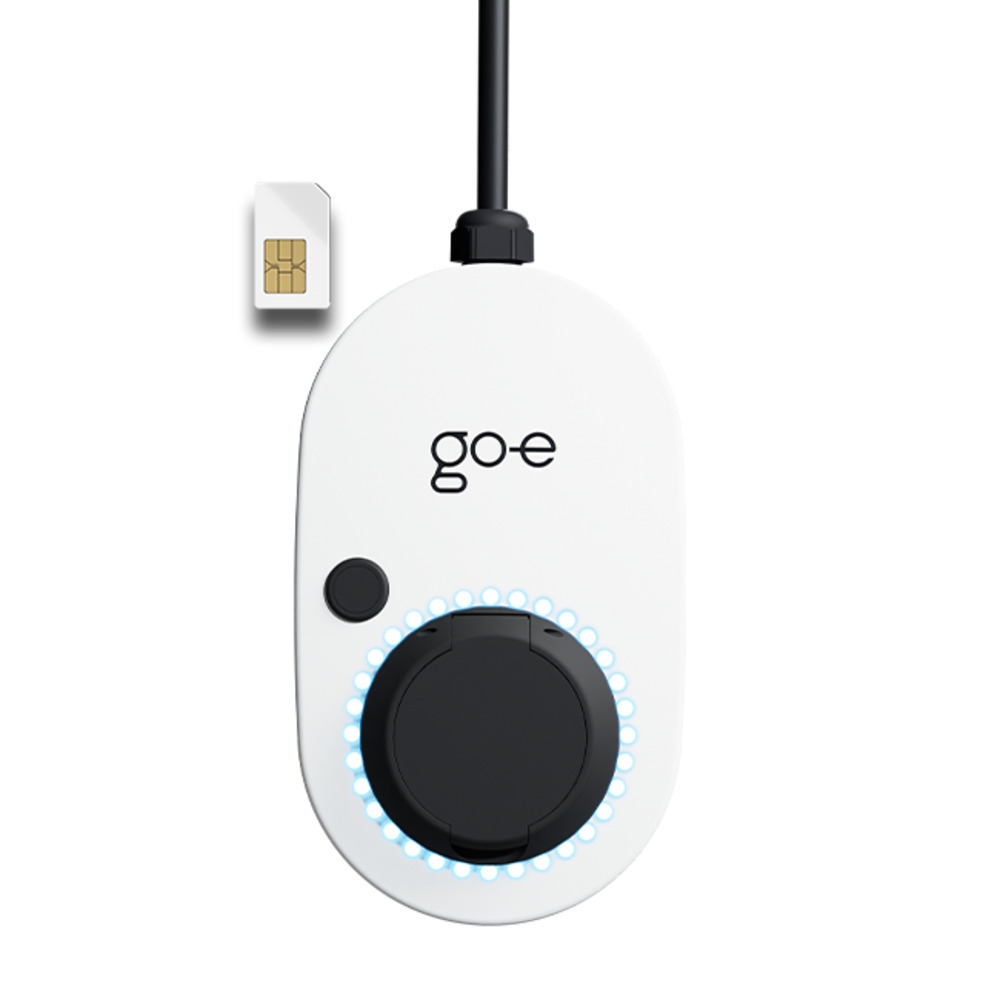

• Ampere and status display: Readable via LED ring and app
• Setting the charging power: Via push-button and app
• Charging power adjustable between 1.4 kW and 11 kW depending on the number of phases of the car's onboard charger (via charging current in 1 ampere steps between 6 A and 16 A):

• Single-phase charging car: 1.4 kW to 3.7 kW (country-specific limitations must be observed).
• Two-phase charging car: 2.8 kW to 7.4 kW (two-phase connection of the charger is not possible)
• Three-phase charging car: 4.2 kW to 11 kW (go-e Charger switches through the power that is available at the connection)

Product specifications

• Stationary wallbox/charging station: according to EN IEC 61851-1:2019

• Dimensions: approx. 15.5 x 26 x 11 cm
• Weight: approx. 1.85 kg
• Connection cable: 1.8 m, 5 x 2.5 mm² (type H07BQ-F)
• Connection: single-phase or three-phase
• Rated voltage: 230 - 240 V (single-phase) / 400 - 415 V (three-phase)
• Rated frequency: 50 Hz
• Mains types: TT/TN/IT
• Standby power: 3.1 W (LEDs dark) to 5.2 W (LEDs bright)
• RFID: 13.56 MHz
• WiFi: 802.11b/g/n 2.4 GHz / frequency band 2412-2472 Mhz
• Cellular connectivity: 4G | LTE / 2G | EDGE / Supported bands: GSM900, GSM1800, LTE FDD: B1 B3 B5 B7 B8 B20 / Frequency Range: 800MHz - 2600MHz

Additional cellular specifications

• Mobile phone contract: At least 5 years of free cellular connection. Extension possible for 12 euros (incl. VAT) per year.
• SIM card type: Factory-integrated eSIM from go-e (not exchangeable). Factory-installed customer-owned nano-SIM for larger B2B projects.
• Activate/Deactivate: At any time via go-e app or API
• Connection types: Standard: 4G LTE Cat-1; Fallback in case of limited reception: 2G / EDGE
• Country availability go-e tariff: Unlimited cellular connection in all EU countries, Great Britain, Switzerland, Norway and Liechtenstein. Free roaming between these countries.
• Mobile networks: An overview of the mobile networks used in the above-mentioned countries is available on the go-e website in the Support/FAQ section

Permissible environmental conditions

• Installation location: indoors and outdoors
• Operating temperature: -25 °C to + 40 °C
• Storage temperature: -40 °C to + 85 °C
• Average temperature in 24 hours: Maximum 35 °C
• Altitude: Maximum 2,000 m above sea level
• Relative humidity: Maximum 95 % (non-condensing)
• Impact resistance: IK08

Connection to vehicle

• Type 2 socket (according to EN 62196-2) with mechanical locking (own type 2 cable required, available as accessory)
• Vehicles with type 1 can be charged with adapter cable type 2 to type 1 (available as accessory)

Safety

• Integrated DC protection module with DC detection and additional AC Detection (6 mA DC, 20 mA AC). On the building side, an RCD type A must be installed and a miniature circuit breaker must be installed upstream. The local installation regulations must be observed.
• Protection class: I
• Pollution degree: II
• Anti-theft device: Locking of the charging cable
• Access control: Can be activated if required. Authentication via RFID or App possible. One learned RFID chip is already included.
• Input voltage: Phase and voltage check
• Switching functions: Switching function test
• Earthing test: For TT, TN mains (disconnectable earthing test for IT mains - Norway mode)
• Current sensor: 3-phase

• Temperature sensors: Regulation of the charging current in case of overtemperature

• Mains-supplied control: Via 2 data cables for connection to a ripple control receiver
• IP65: Protection against dirt and water, suitable for permanent outdoor operation
• go-e grid operator API: For authorised access of the electricity grid operator to the go-e Charger for grid-serving power control
• Modbus TCP: e.g. for grid-serving power control by the electricity grid operator

App and connectivity

• Local (WiFi hotspot) or worldwide** (WiFi or cellular connectivity) control and monitoring.
• Setting/checking the charge (voltage, current, power, energy)
• Adjustment of current level in 1 ampere steps
• Start/stop function
• RFID chip/card management (up to 10 users per charger) / access management (RFID/app)
• Scheduler
• Electricity meter (total kWh and total amount per RFID chip)
• kWh Limit Mode / Eco Mode** / Daily Trip Mode**
• Push notifications**
• Cable release functions
• Flexible electricity tariffs with intelligent charging management**/***
• Static load balancing**
• Photovoltaic connection via go-e controller (separate product) or open API interface (programming required) or alternative energy management system**
• OCPP 1.6**
• LED adjustment
• Management of charging levels via push-button on charging station
• Updateable for later functions (Smart Home, etc.)**
• Automatic unlocking of the charging cable in case of power failure
• 1-/3-phase switching via app or automatically with go-e Controller - even during the charging process
• Synchronisation of charging processes with the cloud and display of past charging processes**.
• Documented public API interfaces: HTTP, MQTT (only via WiFi possible), Modbus TCP (only via WiFi possible)

**Internet connection of the charger required

***Contract required with an electricity provider whose flexible electricity tariff is integrated in the go-e app. Several 100 tariffs are stored. The number of tariffs is constantly being expanded.
