EATON Residual current circuit breaker 40 A 30 mA type A

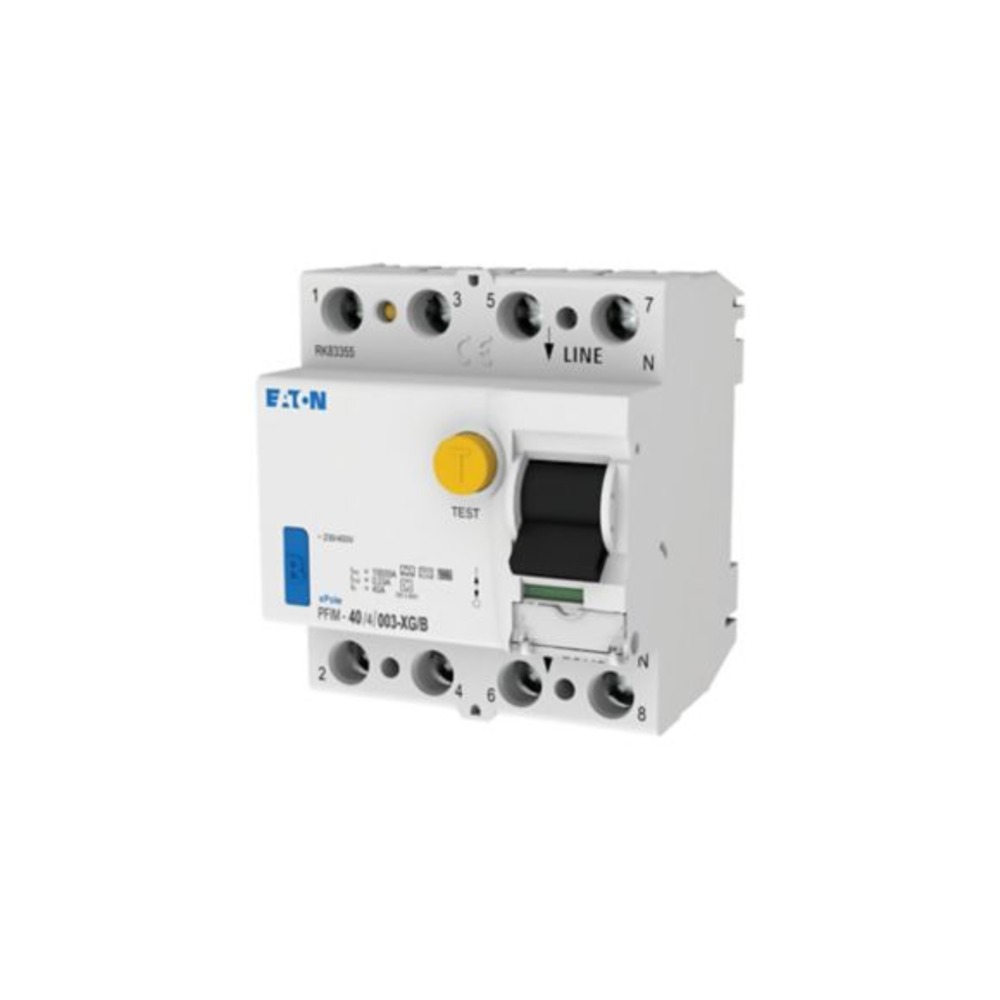

Eaton RCD 40 A 4p 30 mA type XG/B

The go-e Charger is equipped with an integrated DC protection module with DC detection and additional AC detection (6 mA DC, 20 mA AC).

On the building side, an RCD type A must be installed and a miniature circuit breaker must be installed upstream. The local installation regulations must be observed.

GENERAL SPECIFICATIONS

• Product name: Eaton Moeller series xPole - PFIM Type B RCCB
• Part no.: PFIM-40/4/003-XG/B
• Product Length/Depth: 80 millimetre
• Product height: 71 millimetre
• Product width: 70 millimetre
• Product weight: 0.32 kilogram
• Compliances: RoHS conform
• Certifications: IEC/EN 62423, IEC/EN 61008
• Product Tradename: xPole - PFIM Type B
• Product Type: RCCB
• Product Sub Type: None

Basic Information

• Application: Switchgear for residential and commercial applications, xPole - Switchgear for residential and commercial applications
• Number of poles: Four-pole
• Tripping time: Short time-delayed
• Amperage Rating: 40 A
• Rated short-circuit strength: 10 kA
• Fault current rating: 30 mA
• Sensitivity type: All current sensitive
• Impulse withstand current: Surge-proof, 3 kA
• Type: PFIM
• Residual current circuit breakers: Type B

TECHNICAL DATA - ELECTRICAL

• Voltage rating: 230 V AC / 400 V AC
• Rated operational voltage (Ue) - max: 400 V
• Rated insulation voltage (Ui): 440 V
• Rated impulse withstand voltage (Uimp): 4 kV
• Rated fault current - min: 0.03 A
• Rated fault current - max: 0.03 A
• Frequency rating: 50 Hz
• Short-circuit rating: 63 A (max. admissible back-up fuse)
• Leakage current type:B
• Rated residual making and breaking capacity: 500 A
• Admissible back-up fuse overload - max: 40 A gG/gL
• Rated short-time withstand current (Icw): 10 kA
• Surge current capacity: 3 kA
• Test circuit range: 196 V AC - 253 V AC
• Pollution degree: 2
• Lifespan, electrical: 4000 operations

TECHNICAL DATA - MECHANICAL

• Frame: 45 mm
• Width in number of modular spacing: 4
• Built-in width (number of units): 70 mm (4 SU)
• Built-in depth: 70.5 mm
• Mounting Method: Quick attachment with 2 latch positions for DIN-rail IEC/EN 60715, DIN rail
• Degree of protection: IP40, IP54 (with moisture-proof enclosure), IP20
• Terminals (top and bottom): Open mouthed/lift terminals
• Terminal capacity (solid wire): 1.5 mm² - 35 mm²
• Connectable conductor cross section (solid-core) - min: 1.5 mm²
• Connectable conductor cross section (solid-core) - max: 35 mm²
• Terminal capacity (stranded cable): 16 mm² (2x)
• Connectable conductor cross section (multi-wired) - min: 1.5 mm²
• Connectable conductor cross section (multi-wired) - max: 16 mm²
• Terminal protection: Finger and hand touch safe, DGUV VS3, EN 50274
• Busbar material thickness: 0.8 mm - 2 mm
• Lifespan, mechanical: 20000 operations
• Permitted storage and transport temperature - min: -35 °C
• Permitted storage and transport temperature - max: 60 °C
• Climatic proofing: 25-55 °C / 90-95% relative humidity according to IEC 60068-2
