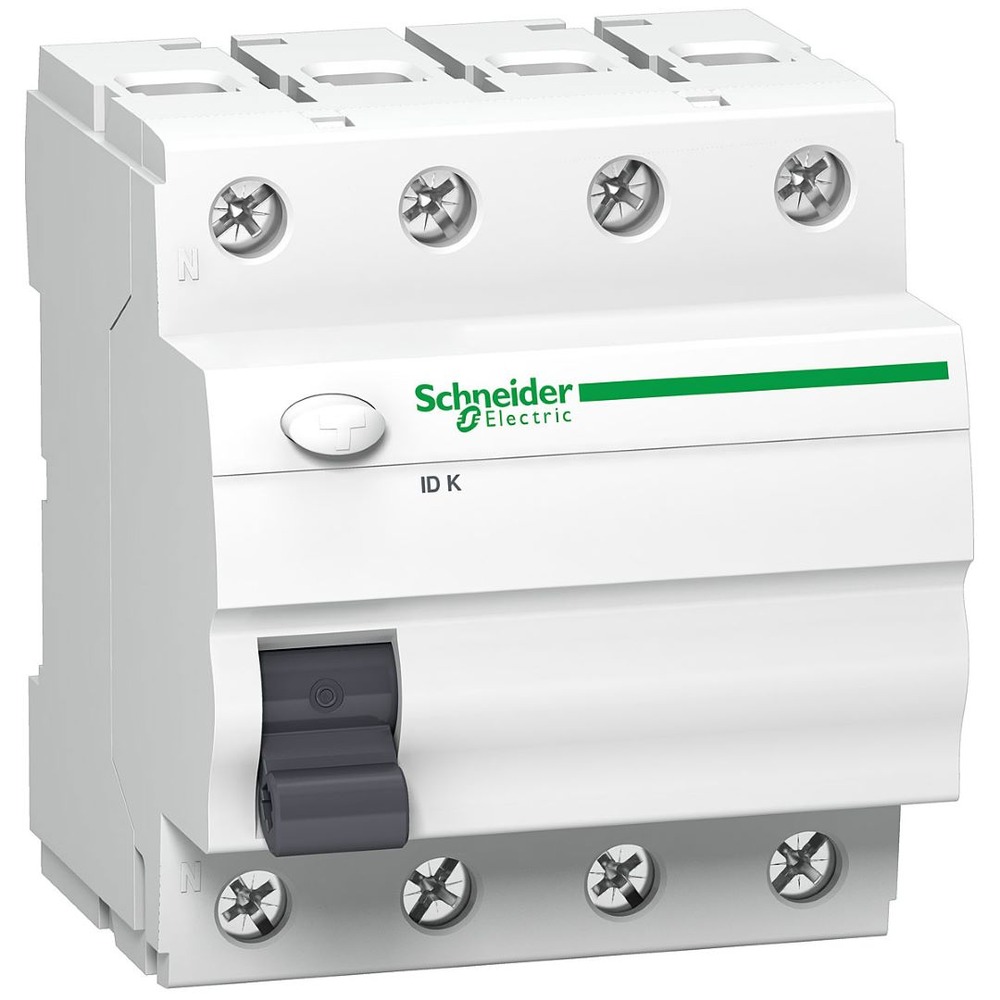

Residual current circuit breaker 40 A 30 mA type A

RCD 40 A 30 mA type A

The go-e Charger is equipped with an integrated DC protection module with DC detection and additional AC detection (6 mA DC, 20 mA AC). On the building side, an RCD type A must be installed.

Mounting

• Standards: EN/IEC 61008-1
• Protection class (IP): IP40 for modular housing corresponds to IEC 60529 / IP20 corresponds to IEC 60529
• Pollution degree: 2
• Electromagnetic compatibility: 8/20 µs pulse immunity, 200 A complies with EN/IEC 61008-1
• Ambient temperature during operation: -25...40 °C
• Ambient temperature during storage: -30...70 °C

RCD type A Main features

• Series/product name: Acti 9 ID K
• Product or component type: Residual current circuit breaker (RCCB)
• Pole description: 4P
• Neutral position: Left
• Rated current: 40 A
• Network connection: AC
• Earth fault sensitivity: 30 mA
• Earth fault protection time delay: Instantaneous
• Earth-fault protection class: Type A
• Quality label: OVE

Additional features:

• Device position in the system: Outgoing feeder
• Network frequency: 50/60 Hz
• Rated operational voltage Ue: 380...415 V AC 50 Hz
• Residual current tripping technology: Voltage-independent
• Rated undercurrent and tripping capacity: Im 500 A / Idm 500 A
• Bed. Rated short-circuit current: With gL63 : Inc 4.5 kA / With K60 : Inc 6 kA
• Rated insulation voltage Ui: 440 V AC 50 Hz
• Rated impulse withstand voltage [Uimp]: 4 kV
• Type of actuation: Toggle switch
• Mounting variant: Screw terminals
• Mounting bracket: DIN rail
• 9 mm pitch: 8
• Dimensions (height x width x depth): approx. 81 x 72 x 68 mm
• Colour: white
• Mechanical life: 5,000 cycles
• Electrical life: 2,000 cycles AC-1
• Connections - terminals: Double function, top or bottom fixed wire/wires 1...35 mm² or double function, top or bottom flexible wire/wires 1...25 mm² max.
• Wire stripping length: 14 mm (top or bottom)
• Tightening torque: 3.5 Nm (top or bottom)
