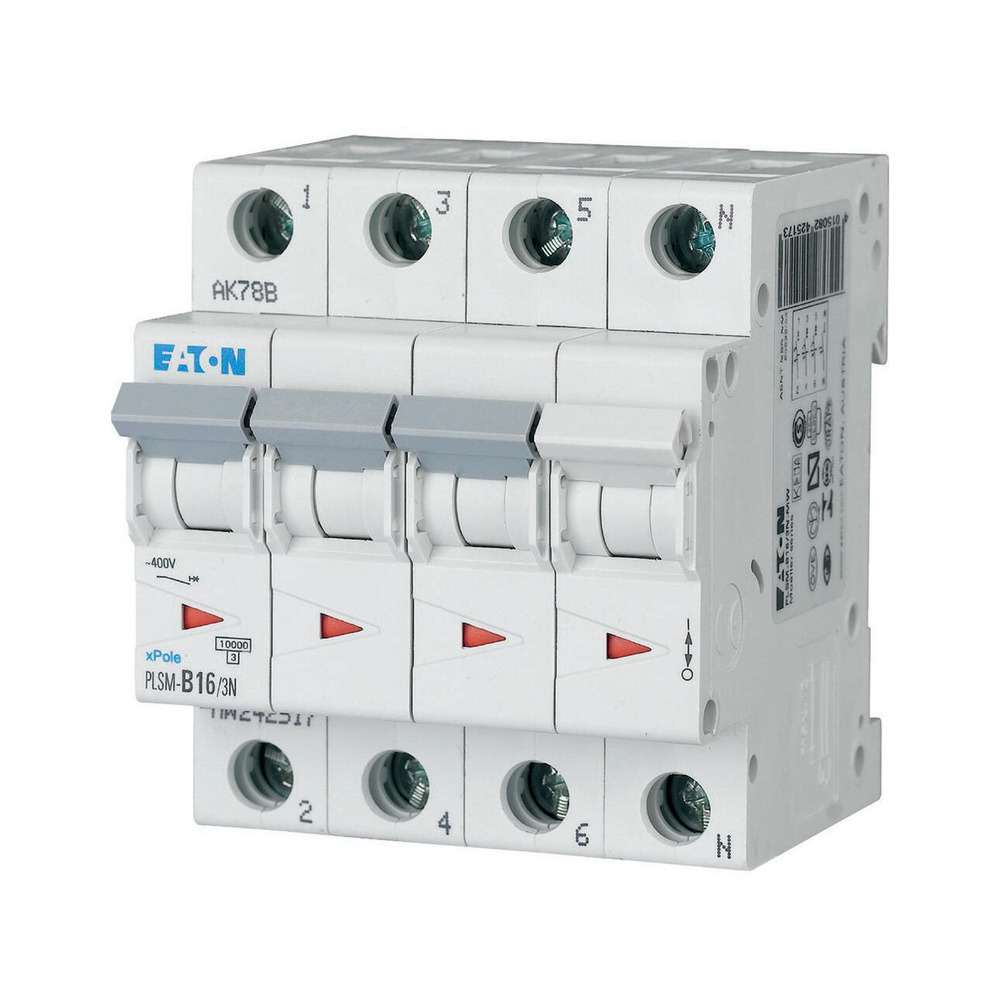

EATON Miniature circuit breaker 16 A 3P+N

EATON Miniature circuit-breaker 16 A 3P+N

The circuit to which the go-e Charger is to be connected must be equipped with a miniature circuit breaker (characteristic B or C) of the following specification:

• Connection 16 A or 32 A three-phase = 3- or 4-pole miniature circuit breaker for 16 A or 32 A.
• Connection 16 A or 32 A single-phase = 2-pole miniature circuit breaker for 16 or 32 A

The miniature circuit breaker offered here is suitable for the three-phase connection of the go-e Charger with a maximum of 16 A.

GENERAL SPECIFICATIONS

• PRODUCT NAME: Eaton Moeller series xPole - PLS6/M MCB
• CATALOG NUMBER: 242517
• MODEL CODE: PLSM-B16/3N-MW
• EAN: 4015082425173
• PRODUCT LENGTH/DEPTH: 80 mm
• PRODUCT HEIGHT: 75 mm
• PRODUCT WIDTH: 70 mm
• PRODUCT WEIGHT: 0.399 kg
• COMPLIANCES: RoHS conform

Basic Information

• APPLICATION: Switchgear for residential and commercial applications, xPole - Switchgear for residential and commercial applications
• NUMBER OF POLES: Three-pole + N
• NUMBER OF POLES (TOTAL): 4
• NUMBER OF POLES (PROTECTED): 3
• TRIPPING CHARACTERISTIC: B
• RELEASE CHARACTERISTIC: B
• AMPERAGE RATING: 16 A
• TYPE: Miniature circuit breaker, PLSM

TECHNICAL DATA - ELECTRICAL

• VOLTAGE TYPE: AC
• RATED OPERATIONAL VOLTAGE (UE) - MAX: 400 V
• RATED INSULATION VOLTAGE (UI): 440 V
• RATED IMPULSE WITHSTAND VOLTAGE (UIMP): 4 kV
• FREQUENCY RATING - MIN: 50 Hz
• FREQUENCY RATING - MAX: 60 Hz
• RATED SWITCHING CAPACITY (IEC/EN 60898-1): 10 kA
• RATED SHORT-CIRCUIT BREAKING CAPACITY (EN 60898) AT 230 V: 10 kA
• RATED SHORT-CIRCUIT BREAKING CAPACITY (EN 60898) AT 400 V: 10 kA
• RATED SHORT-CIRCUIT BREAKING CAPACITY (IEC 60947-2) AT 230 V: 0 kA
• RATED SHORT-CIRCUIT BREAKING CAPACITY (IEC 60947-2) AT 400 V: 0 kA
• OVERVOLTAGE CATEGORY: III
• POLLUTION DEGREE: 2

TECHNICAL DATA - MECHANICAL

• WIDTH IN NUMBER OF MODULAR SPACINGS: 4
• BUILT-IN DEPTH: 70.5 mm
• DEGREE OF PROTECTION: IP20
• CONNECTABLE CONDUCTOR CROSS SECTION (SOLID-CORE) - MIN: 1 mm²
• CONNECTABLE CONDUCTOR CROSS SECTION (SOLID-CORE) - MAX: 25 mm²
• CONNECTABLE CONDUCTOR CROSS SECTION (MULTI-WIRED) - MIN: 1 mm²
• CONNECTABLE CONDUCTOR CROSS SECTION (MULTI-WIRED) - MAX: 25 mm²
