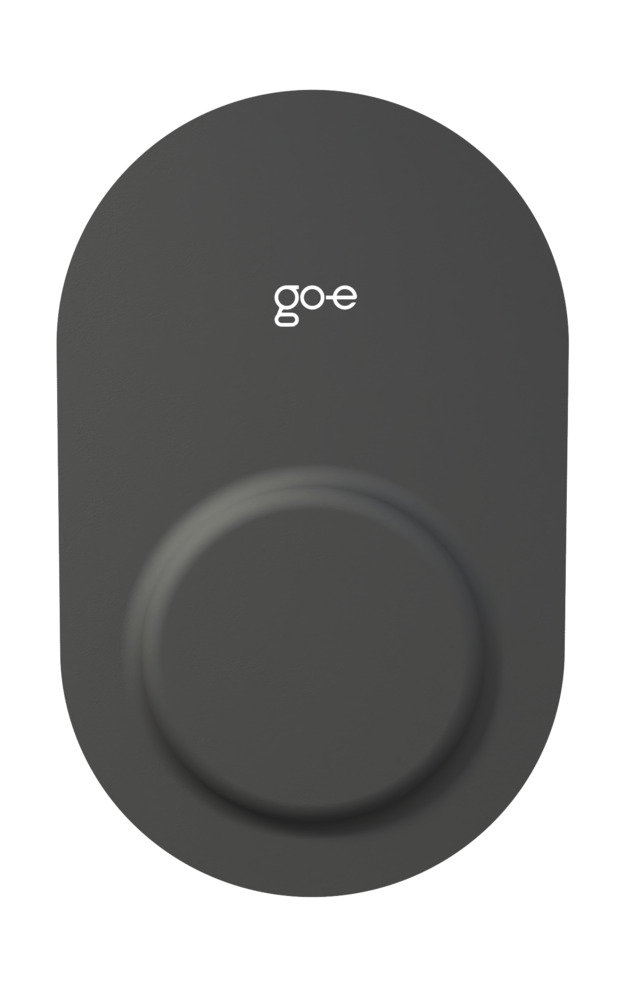

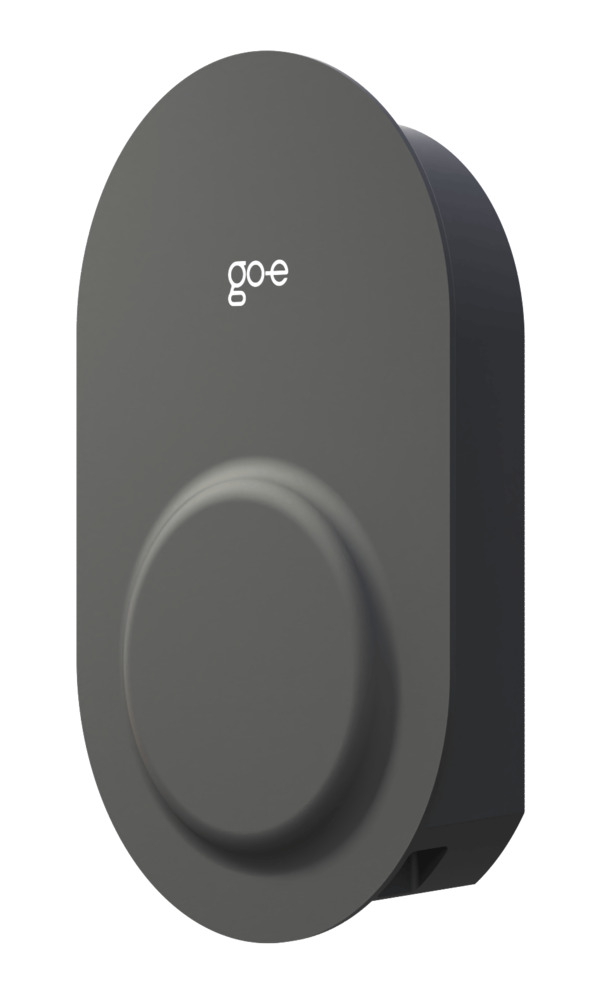

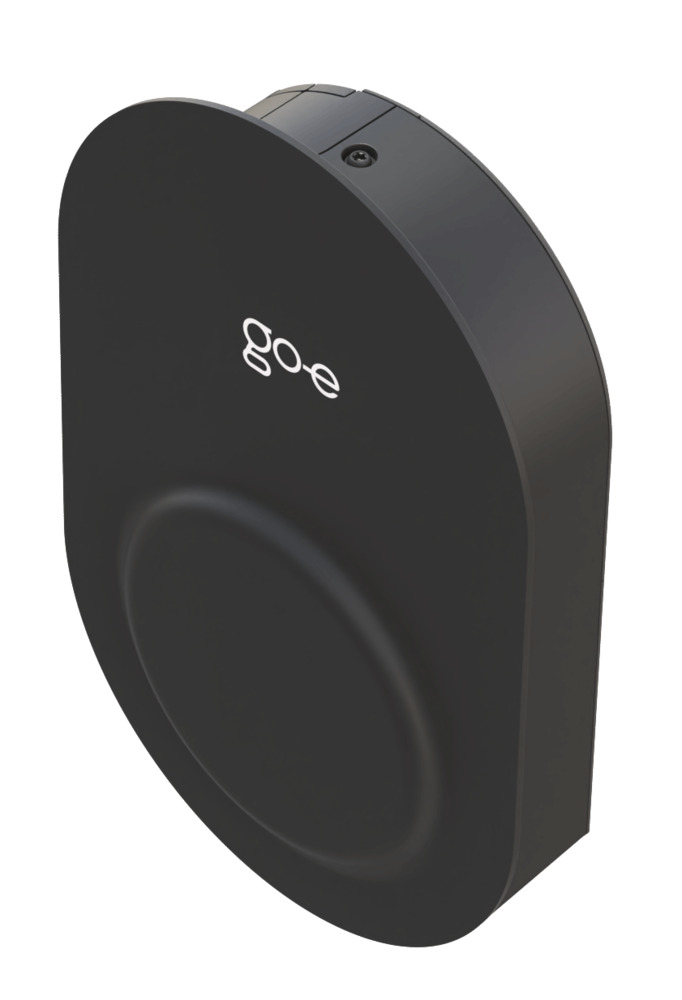

go-e PRO Blind Cover

PRO & CORE Blind Cover

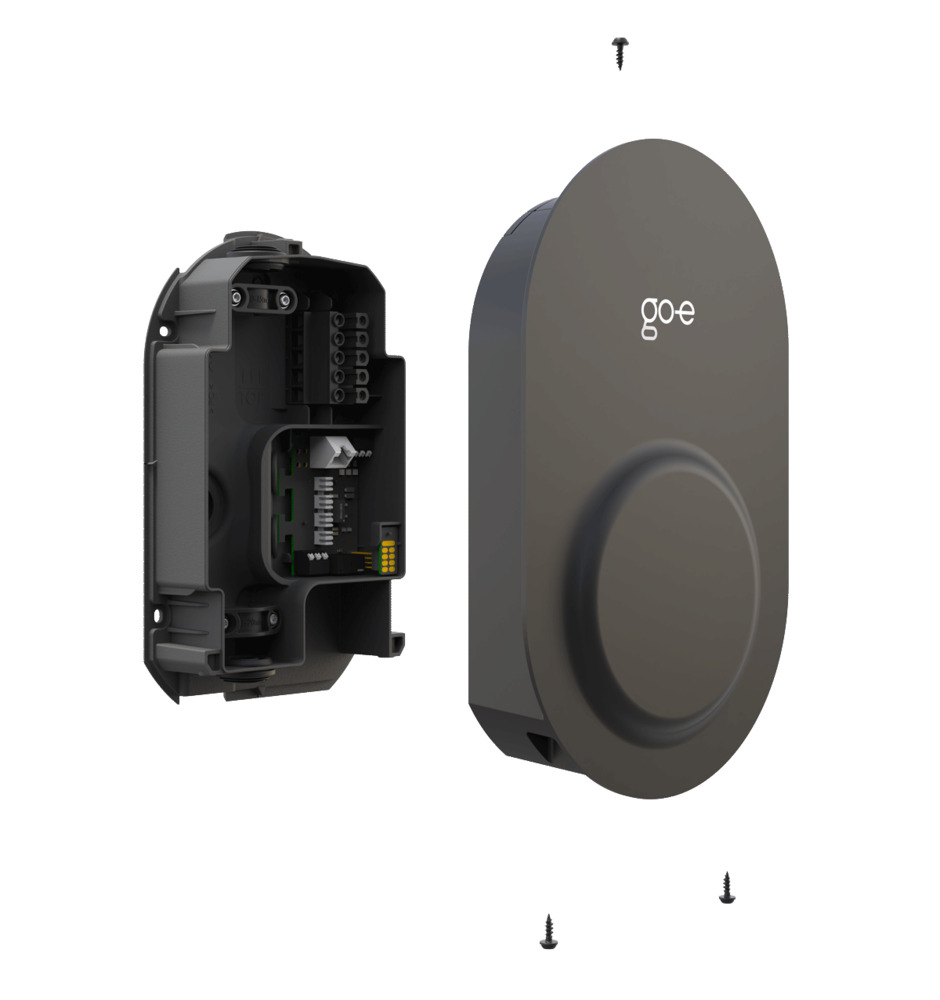

The PRO/CORE Blind Cover allows you to prepare parking spaces for electric vehicle charging in advance, without having to install a wallbox at every parking space. In addition to the blind cover itself, the set includes some components that are also part of the go-e Charger PRO or CORE series devices, namely the same wall mounting unit and the mounting material. It protects against external impacts once the wiring has been completed and thus ensures a safe and clean appearance until replaced by a PRO or CORE charging unit.

Ideally suited for car parks of apartment buildings with rental flats or condominiums, as well as office complexes, commercial enterprises and industrial companies. In this way, many parking spaces can be prepared for charging infrastructure at a low cost. A dynamic load balancing system can already be included to protect against overloading the power supply in the future, even if only a few parking spaces are initially equipped with wallboxes. This also helps to maintain the value of the property and ensures that a wallbox can be installed when needed. At the same time, the blind cover speeds up the future installation of a charging unit.

Once the pre-installation is complete, it is advisable to leave the contact details of the responsible party for the sale and installation of the charging unit on the blind cover (e.g. on a sticker). This ensures that EV drivers know who to contact if they need a go-e Charger PRO or go-e Charger CORE.

As soon as the blind cover has been replaced by a charging unit, it can be reused for another parking space. This is possible because together with the components not required by the go-e Charger PRO/CORE that has just been installed, such as the wall mounting unit, it forms a complete PRO/CORE Blind Cover set again.

• Blind cover

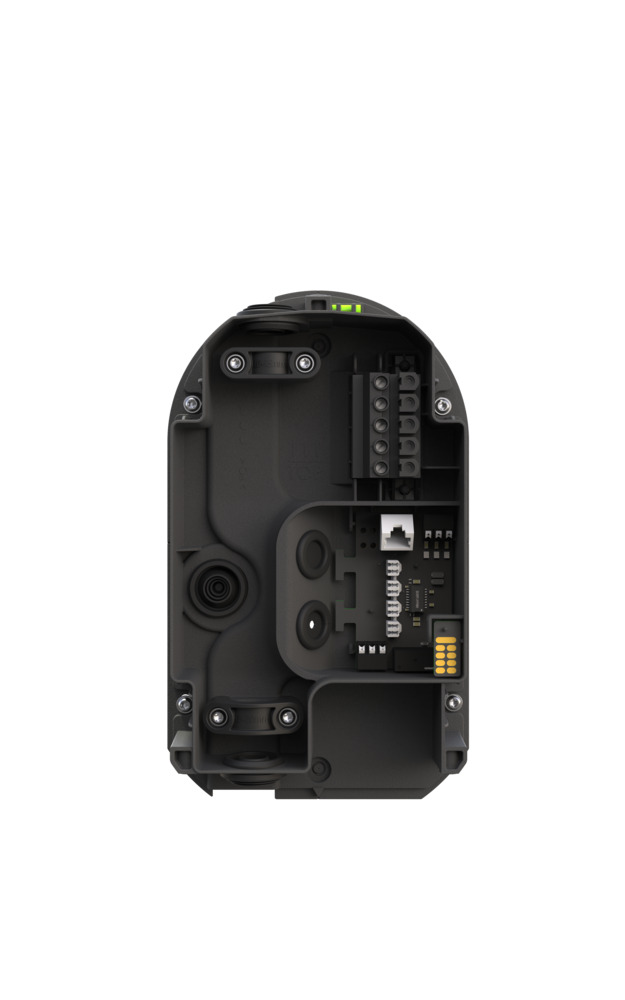

• Wall mounting unit
• Fastening materials such as screws, dowels, cable ties, cable clamps
• Various grommets
• Sealing sticker
• Quick reference guide

Note: Apart from the blind cover, all the components listed above in the scope of delivery are also supplied with a PRO or CORE series go-e Charger. In addition, a PRO or CORE Charger contains the charging unit with permanently attached charging cable (6 m long) and type 2 plug (in accordance with IEC 62196), a rest card and a paired RFID tag. The charging station can only be used as intended with these components.

• Height: approx. 292.7 mm
• Width: approx. 181.7 mm
• Depth: approx. 50.7 mm
• Material: polycarbonate
• Colour: black
• Impact resistance: IK10
• IP66: Protected against dirt and water, suitable for permanent outdoor operation

Country of origin: Austria

Note: The installation of the PRO/CORE Blind Cover and the replacement of the blind cover with a go-e Charger PRO/CORE charging unit must be carried out by a qualified electrician.
